Static Sites & CDN Migration

Chapter 4 8 min read Infrastructure Guide S3Static Apps
This is Part IV of our ongoing series on migrating LEAD's enterprise platform from AWS to Azure. This chapter covers the migration of our static sites from AWS S3 to Azure Static Web Apps.

Overview

When migrating our sites from AWS to Azure, the governing constraint was not compute, storage, or even performance, but rather DNS.

Specifically:

These constraints determined which Azure services were viable and which required workarounds, based on the fact that our migration from Route53 to Azure DNS Zones would be a future step after our core applications and websites were migrated. In some cases this led to intermediate architectures before we arrived at a cleaner long-term solution.

This guide covers the three scenarios we encountered, including their shortfalls and the final architecture we arrived at:

  1. WordPress → Azure Storage (with AWS apex redirect)
  2. Azure Storage + Front Door (CDN with external DNS constraints)
  3. Azure Static Web App + Azure DNS Zone (clean apex solution)

Each approach has different DNS implications, operational tradeoffs, and complexity.

DNS Constraints (The Governing Factor)

Before reviewing the scenarios, it’s important to understand what Azure services can and cannot support at the apex level.

DNS Rules That Matter:

Service Capability Matrix

Azure Resource Type Custom Domain Apex Domain Support HTTPS
Azure Web App ✅ Yes ✅ IP or alias ✅ Managed cert
Azure Static Web App ✅ Yes ⚠️ Azure DNS alias only ✅ Managed cert
Azure Storage (static website) ⚠️ CNAME only ❌ No ❌ Not natively
Azure Front Door ✅ Yes ⚠️ Azure DNS alias only ✅ Managed cert

Key implications:

These constraints drove the architecture in each migration.

Scenario 1: WordPress → Azure Storage (Sunrize)

Goal

Migrate WordPress content to a static site hosted on Azure Storage to eliminate WordPress maintenance and reduce cost.

We’ll gloss over the details of this as it’s not relevant to the migration strategy, but with LLM coding assistants, many simple websites that were previously hosted on WordPress are actually good candidates for static websites, and the operational complexity of running them or making changes is much lower than managing a WordPress instance.

We elected to use Jekyll for the static site generator, but any static site generator would work.

Architecture Attempted

Internet
    ↓
Route53
    ↓
Azure Storage Static Website

What Worked

What Failed

The root domain (example.com) could not be moved.

Why:

Result:

Workaround Implemented

We kept the existing Azure WordPress instance from a prior migration (hosted as an Azure Web App, with a static IP), downsized it, and turned it into a redirect service:

example.com  → 301 redirect → www.example.com
www.example.com → Azure Storage

This allowed us to complete the migration prior to moving DNS providers.

Evaluated Alternative: S3 Redirect

We evaluated using an S3 bucket for apex redirect. While this works for HTTP, it does not support HTTPS without CloudFront. That reintroduced AWS infrastructure and complexity, so we abandoned it.

Final Architecture

Apex → Azure redirect server
www  → Azure Storage

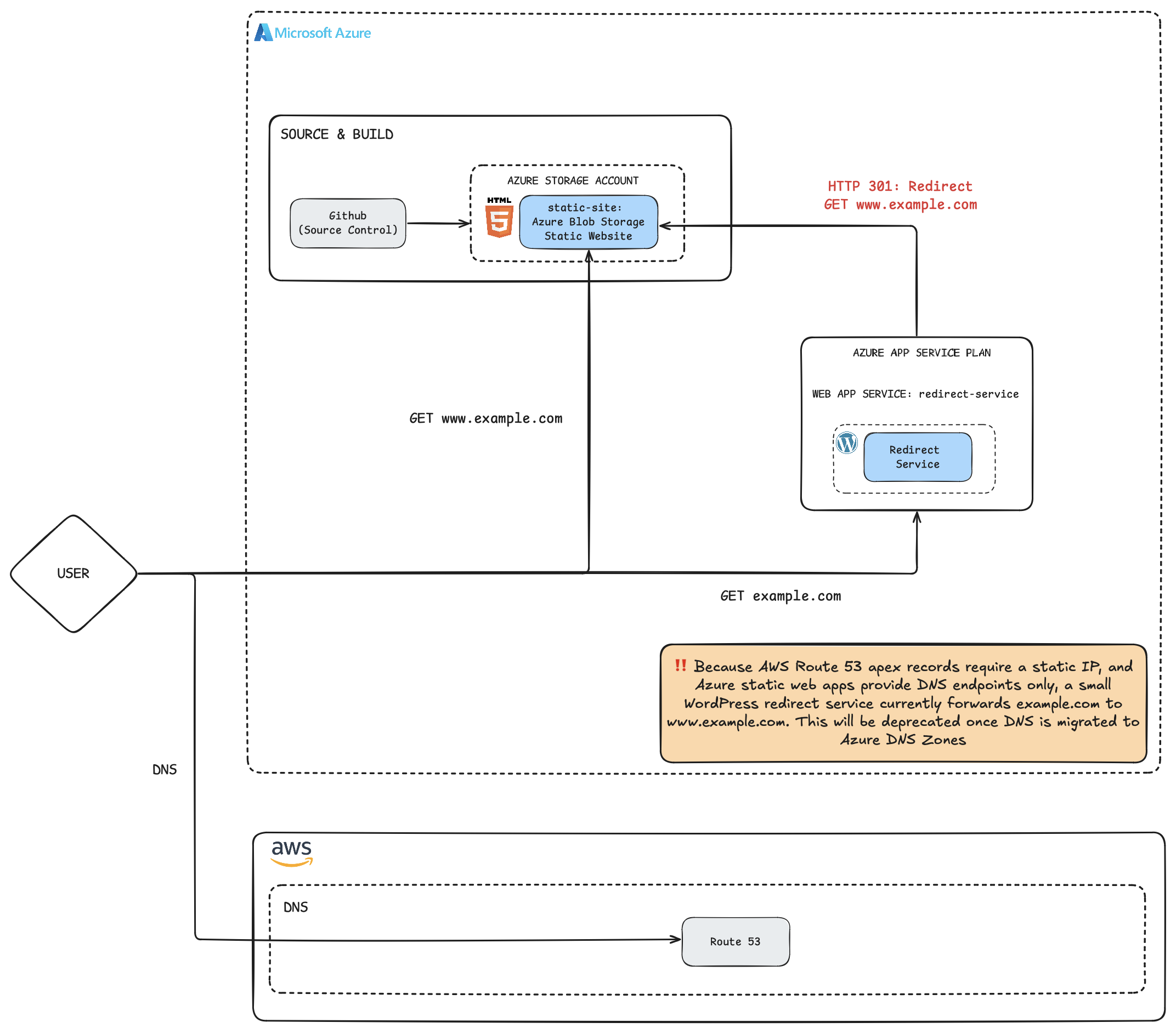

Static Site Architecture Option 1

This was funtional, but inelegant, and served as a stop gap until we could move DNS providers.

Deployment

Our static site is developed locally and deployed with a simple Makefile that uses the Azure Storage CLI to upload the new site contents:

deploy:
        az storage blob upload-batch --account-name "<ACCOUNT_NAME>" --destination '$$web' --source _site --overwrite

Scenario 2: Azure Storage + Front Door (CDN Layer)

When DNS is migrated to Azure DNS Zones, there are several options for hosting a static site. The first of those is to continue to use Azure Storage, but to front it with a CDN, which Azure DNS Zones can alias to (even for Apex records).

This scenario can be a natural next step for the one outlined above.

When This Applies

Architecture

Internet
    ↓
Azure DNS Zone
    ↓
Azure Front Door
    ↓
Azure Storage Static Website

Azure Front Door provides:

DNS Considerations

If DNS remains external:

If DNS is moved to Azure DNS Zone:

Without Azure DNS, an apex workaround is still required.

Real World Example: Migrating an Angular SPA from EC2 to Blob + Front Door

This did, however, serve as a strong solution for one of our static sites served under a subdomain (an Angular-based frontend that had previously been running inside a shared EC2 container alongside other services).

The objective was straightforward:

Architecture

Internet
    ↓
Route53
    ↓
Azure Front Door
    ↓
Azure Storage Static Website

Because DNS was still in Route53 at the time:

This mirrored Scenario 2, but in a production setting.

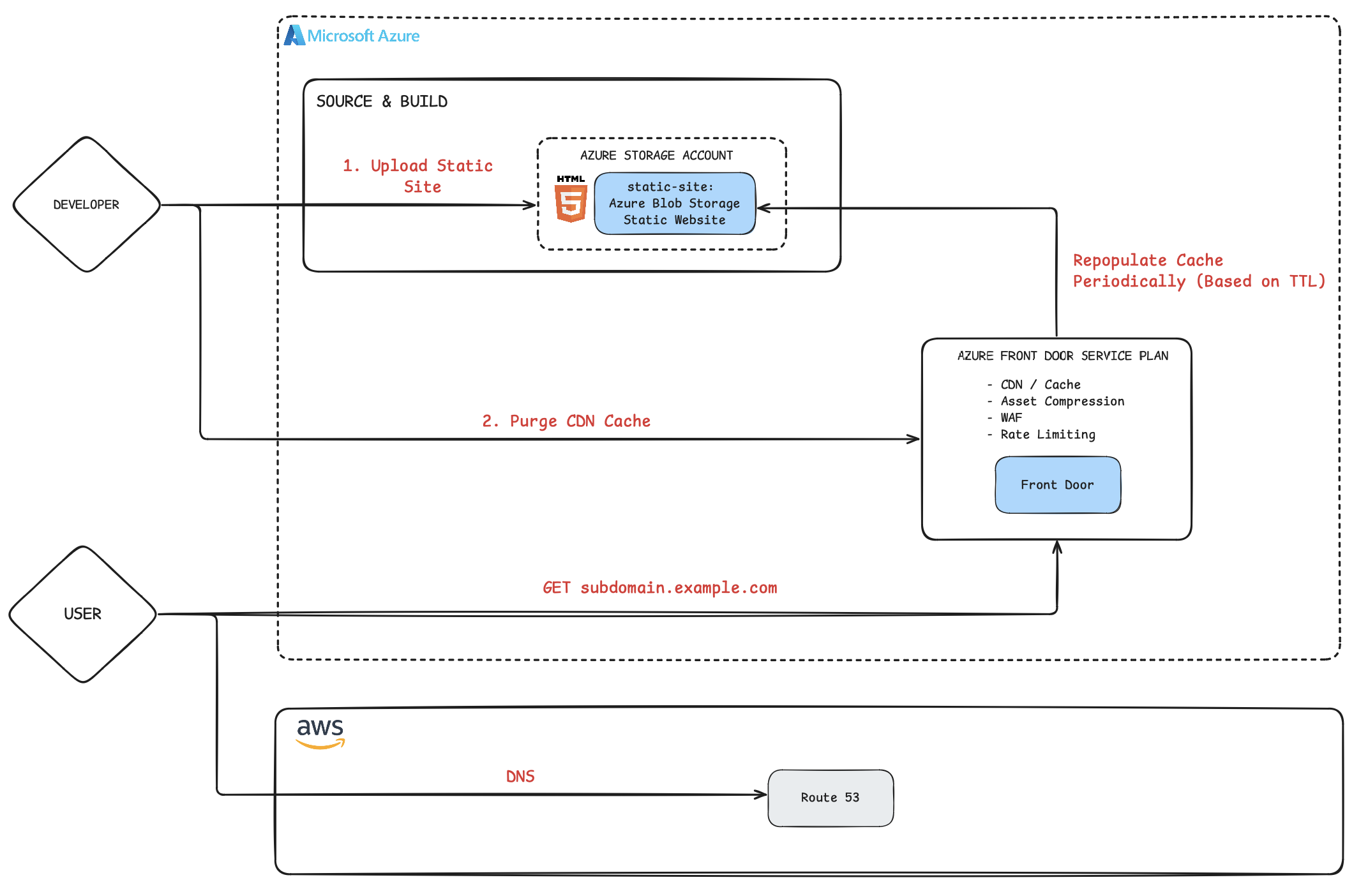

Static Site Architecture Option 2

CDN Coordination Matters

Angular builds produce hashed asset filenames:

main.84fd31.js
runtime.aa9221.js

The index.html references these exact filenames.

This introduces an important operational nuance:

If:

Then users may request assets that no longer exist.

There are two ways to handle this:

  1. Leave historical assets in storage indefinitely
  2. Clean up old assets and purge the CDN on deployment

Our deployment utility offers three options

  1. do not purge CDN
  2. purges Front Door cache async
  3. purge Front Door cache sync

The purging ensures that each release to ensure the next request for index.html retrieves the updated version that references the new hashed assets.

This coordination between storage cleanup and CDN invalidation is essential for SPA deployments behind a CDN. We share the full deployment script at the bottom of the article.

Why Front Door Was Valuable

Beyond solving HTTPS and DNS integration, Front Door provided:

Even for a fully static site, these features reduced operational overhead while providing enhanced scalability and security.

Scenario 3: Azure Static Web App + Azure DNS Zone

This is the clean architecture we adopted for our other static site, which was not migrated, but a net new creation.

Key Difference

We moved DNS into an Azure DNS Zone.

That unlocked alias A records to Azure services. And using a static Web App allowed us to optionally add Front Door as a CDN, it does not require it.

Archtiecture

Internet
    ↓
Azure DNS Zone
    ↓
Azure Static Web App

Why This Works

This eliminated the need for:

Result

example.com → Azure Static Web App (alias A)
www.example.com → CNAME

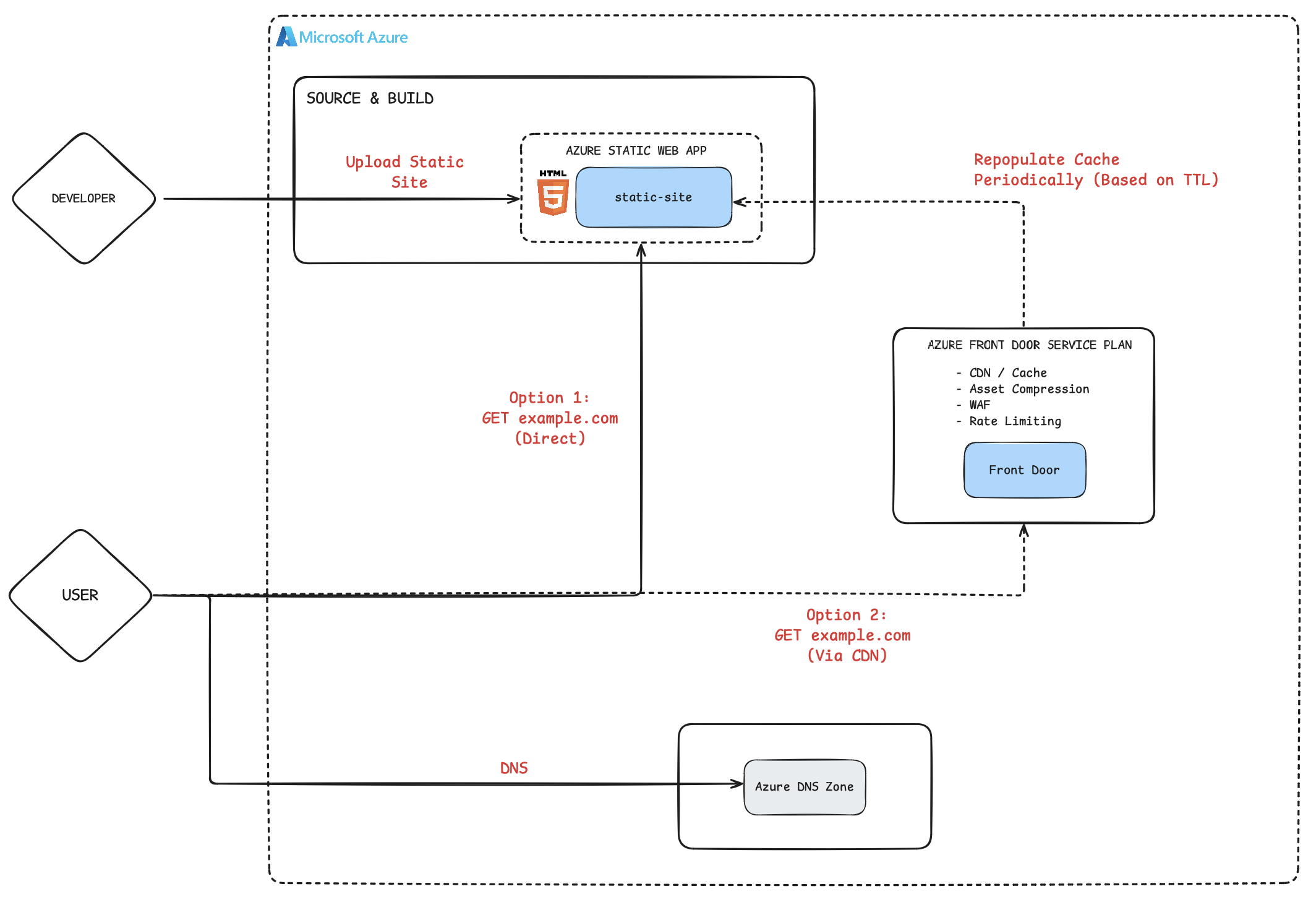

Static Site Architecture Option 3

An simple, fully Azure-native solution.

Deployment

As a small company we’re always seeking simple solutions. For deployments we wanted something as straightforward as Azure Storage, and built a small utility using the @azure/static-web-apps-cli package:

.PHONY: deploy setup

setup:
        @if ! command -v swa &> /dev/null; then \
                npm install -g @azure/static-web-apps-cli; \
        else \
                echo "Azure Static Web Apps CLI is already installed"; \
        fi

deploy: setup
        swa login --subscription-id "<SUBSCRIPTION_ID>" \
                  --resource-group "<RESOURCE_GROUP>>" \
                  --app-name "<APP_NAME>"
        swa deploy ./web --env production --app-name "<APP_NAME>" --resource-group "<RESOURCE_GROUP>"

Implementation Details

Azure Storage Static Website

az storage account create \
  --name "sunrizelanding" \
  --resource-group "sunrize-rg" \
  --location "centralus" \
  --sku "Standard_LRS" \
  --kind "StorageV2"

Enable static website in Portal:

Deploy:

az storage blob upload-batch \
  --account-name "sunrizelanding" \
  --destination '$web' \
  --source _site \
  --overwrite

Azure Front Door

Create profile and configure origin to:

<storageaccount>.z1.web.core.windows.net

Add custom domain, validate via TXT record, enable managed certificate.


Azure Static Web App

Create:

az staticwebapp create \
  --name "<STATIC_WEB_APP_NAME>" \
  --resource-group "<RESOURCE_GROUP>" \
  --location "centralus"

Add custom domain:

az staticwebapp hostname add \
  --name "<STATIC_WEB_APP_NAME>" \
  --resource-group "<RESOURCE_GROUP>" \
  --hostname "<HOSTNAME>"

When using Azure DNS Zone, this automatically creates:


Redirect Handling (Static Web App)

Add staticwebapp.config.json:

{
  "navigationFallback": {
    "rewrite": "/index.html",
    "exclude": ["/images/*", "/css/*", "/js/*"]
  }
}

This enables SPA-style routing fallback.

Performance Comparison (WordPress vs Static)

Platform Desktop Mobile
WordPress (Azure P1V3) 66 33
Static (Azure Storage) 88 56

Static hosting reduced cost and improved performance significantly, while significantly reducing operational complexity. The comparison above is for an unoptimized static site versus a WordPress site that utilized many extensions to improve performance.

Lessons Learned

Plan DNS First

DNS constraints determine viable hosting models. Static IP assumptions do not hold in Azure static services.

External DNS Limits Apex Options

If DNS remains in Route53:

Azure DNS + Static Web Apps Is Cleanest

CDN Invalidation Must Be Coordinated

For SPAs that generate hashed asset filenames, CDN cache must be purged when cleaning up old assets. Otherwise stale index files may reference deleted resources.

Azure CLI is powerful

Understanding that upfront simplifies everything that follows. Our new sites were able to use Static Web Apps directly, as they were not constrained by external DNS. Our migrated sites required a more gradual process that dealt with the tradeoffs.

Appendix

Azure Angular deployment script, allowing optional CDN purge syncronously or asynchronously. Note that hardcoded variables are denoted with angle brackets (adjust for your environment)

#!/usr/bin/env python3

import json
import os
import signal
import sys
import subprocess
import argparse
import shutil
from datetime import datetime

###############################################################################
##                                 VARIABLES                                 ##
###############################################################################

AZURE_CONTAINER_NAME = {
    "stage": "$web",
    "prod":  "$web",
}
AZURE_ACCOUNT_SUFFIX =  {
    "stage": "z20.web.core.windows.net",
    "prod":  "z13.web.core.windows.net",
}
STORAGE_ACCOUNT_NAME =  {
    "stage": "<STORAGE_ACCOUNT_NAME_STG>",
    "prod":  "<STORAGE_ACCOUNT_NAME_PROD>",
}
CDN_RESOURCE_GROUP = {
    "stage": "<RESOURCE_GROUP>",
    "prod":  "<RESOURCE_GROUP>",
}
CDN_PROFILE_NAME = {
    "stage": "<CDN_PROFILE_NAME>",
    "prod":  "<CDN_PROFILE_NAME>",
}


###############################################################################
##                             HELPER FUNCTIONS                              ##
###############################################################################

def signal_handler(sig, frame) -> None:
    """ Signal handler for SIGINT (Ctrl+C) """
    print(f"\n{get_timestamp()} Deployment process interrupted. Exiting gracefully...")
    sys.exit(0)

# Register the signal handler for SIGINT
signal.signal(signal.SIGINT, signal_handler)

def get_timestamp() -> str:
    """ Log prefix timestamp in the format: 'YYYY-MM-DD HH:MM:SS' """
    return datetime.now().strftime("%Y-%m-%d %H:%M:%S")

def colorize(text, color) -> str:
    """ Colorize text for terminal output """
    colors = {
        "red":      "\033[91m",
        "green":    "\033[92m",
        "yellow":   "\033[93m",
        "blue":     "\033[94m",
        "purple":   "\033[95m",
        "cyan":     "\033[96m",
        "white":    "\033[97m",
        "reset":    "\033[0m",
    }
    return f"{colors[color]}{text}{colors['reset']}"

def run_command(command, check=True) -> str:
    """ Run a shell command and return the output """
    result = subprocess.run(command, shell=True, capture_output=True, text=True)
    if check and result.returncode != 0:
        print(f"{get_timestamp()} Error: {result.stderr.strip()}")
        sys.exit(result.returncode)
    return result.stdout.strip()

###############################################################################
##                              AZURE FUNCTIONS                              ##
###############################################################################

def check_az_login() -> None:
    """ Check if the user is logged in to Azure CLI """
    try:
        run_command("az account show", check=True)
    except SystemExit:
        print(f"{get_timestamp()} You are not logged in to Azure. Please run 'az login' and try again.")
        sys.exit(1)

def cleanup_old_files(realm) -> None:
    """
        Cleanup old files in Azure Blob Storage.
        LEAD Web will accumulate files over time (as some files have unique names based on the build hash).
        This function will remove all files that were not part of the latest build
    """
    print(f"{get_timestamp()} Cleaning up old files in Azure Blob Storage ({realm})...")
    account_name = STORAGE_ACCOUNT_NAME[realm]
    try:
        # Get list of local files
        local_directory = f"./dist/{realm}"
        local_files = set()
        for root, _, files in os.walk(local_directory):
            for file in files:
                # Collect relative paths as they appear in remote
                relative_path = os.path.relpath(os.path.join(root, file), local_directory)
                local_files.add(relative_path.replace("\\", "/"))  # Ensure uniform path separators

        print(f"{get_timestamp()} Found {len(local_files)} files locally.")

        # Get list of remote files
        list_command = (
            f"az storage blob list "
            f"--account-name {account_name} "
            f"--container-name '{AZURE_CONTAINER_NAME[realm]}' "
            f"--query '[].name' "
            f"--output json"
        )
        remote_files = set(json.loads(run_command(list_command)))

        print(f"{get_timestamp()} Found {len(remote_files)} files in remote storage")

        # Determine files to delete
        files_to_delete = remote_files - local_files
        print(f"{get_timestamp()} Found {len(files_to_delete)} files to delete: {files_to_delete}")

        # Delete the files
        for file in files_to_delete:
            delete_command = (
                f"az storage blob delete "
                f"--account-name {account_name} "
                f"--container-name '{AZURE_CONTAINER_NAME[realm]}' "
                f"--name '{file}' "
            )
            run_command(delete_command)
        print(f"{get_timestamp()} {colorize('Cleanup complete', 'green')} - Removed {len(files_to_delete)} files.")

    except Exception as e:
        print(f"{get_timestamp()} {colorize('Error during cleanup', 'red')}: {str(e)}")
        sys.exit(1)

def purge_cache(realm: str, asyncPurge: bool ) -> None:
    """
        Purge the Azure CDN cache
        Since the other steps clean up old resources, it is important that customers are not pointed to non-existent resources
        This command will take several minutes to run, but can return immediately (and continue asyncronhously) with the --no-wait flag
        For sensitive deploys in which it is essential to receive confirmation of cache purge, do not use the --no-wait flag
        In all other circumstances, asyncPurge set to true will speed the deployment process up
    """
    print(f"{get_timestamp()} Purging Azure CDN cache for realm '{realm}'...")
    try:
        additional_args = " --no-wait true " if asyncPurge else ""
        # Purge the CDN cache
        purge_command = (
            f"az afd endpoint purge "
            f"--resource-group '{CDN_RESOURCE_GROUP[realm]}' "
            f"--profile-name '{CDN_PROFILE_NAME[realm]}' "
            f"--content-paths '/*' "
            f"--endpoint-name '{STORAGE_ACCOUNT_NAME[realm]}' "
            f"{additional_args} "
        )
        run_command(purge_command)
        print(f"{get_timestamp()} {colorize('Cache purge complete', 'green')}")
    except Exception as e:
        print(f"{get_timestamp()} {colorize('Error during cache purge', 'red')}: {str(e)}")
        sys.exit(1)

def deploy(realm: str, cleanup_resources: bool, purge_mode: str) -> None:
    """ Deploy the Angular app to Azure Blob Storage """
    uncommitted_changes = False

    if not realm:
        realm = "stage"
    realm = realm.lower().strip()
    print(f"{get_timestamp()} Starting deployment process for realm '{colorize(realm, 'red')}'...\n")

    # Get git details
    current_branch = run_command("git rev-parse --abbrev-ref HEAD")
    commit_hash = run_command("git rev-parse --short HEAD")
    commit_msg = run_command("git log -1 --pretty=%B")
    print(f"{get_timestamp()} Deploying branch: {current_branch} / commit: {commit_hash} / message: {commit_msg}")

    # Warning unstaged changes: press "Y" to proceed
    if run_command("git status --porcelain"):
        print(f"{get_timestamp()} Warning: There are {colorize('UNSTAGED', 'red')} or {colorize('UNTRACKED', 'red')} changes in the working directory that will be part of the upload.")
        uncommitted_changes = True
        proceed = input("Do you want to proceed with deployment? (Y/N): ")
        if proceed.lower() != "y":
            print(f"{get_timestamp()} Deployment {colorize('aborted', 'red')}.")
            sys.exit(1)

    starttime = datetime.now()

    # Build directory setup
    build_dir = f"./dist/{realm}"
    if os.path.exists(build_dir):
        print(f"{get_timestamp()} Removing old build directory: {build_dir}")
        shutil.rmtree(build_dir)

    # Build the Angular app
    print(f"{get_timestamp()} Building Angular app for realm '{realm}'...")
    build_command = f"./node_modules/@angular/cli/bin/ng build --prod --output-path={build_dir} --configuration={realm}"
    run_command(build_command)

    # Verify the build directory exists
    if not os.path.exists(build_dir):
        print(f"{get_timestamp()} Error: Build directory '{build_dir}' does not exist. Build failed.")
        sys.exit(1)

    # Upload to Azure Blob Storage
    print(f"{get_timestamp()} Uploading files to Azure Blob Storage ({realm})...")
    upload_command = (
        f"az storage blob upload-batch "
        f"--account-name {STORAGE_ACCOUNT_NAME[realm]} "
        f"--source {build_dir} "
        f"--destination '{AZURE_CONTAINER_NAME[realm]}' "
        f"--overwrite "
    )
    run_command(upload_command)

    git_hash = f"{commit_hash}" + f"-{realm}" + f"-{datetime.now().strftime('%Y%m%d%H%M%S')}"
    if uncommitted_changes:
        git_hash += "-ALTERED"
    print(f"{get_timestamp()} Tagging deployment with commit hash: {git_hash}")

    # Tag the deployment with the commit hash
    upload_command = (
        f"az storage blob metadata update "
        f"--account-name {STORAGE_ACCOUNT_NAME[realm]} "
        f"--container-name '$web' "
        f"--name 'index.html' "
        f"--metadata version='{git_hash}' "
    )
    run_command(upload_command)

    if cleanup_resources:
        cleanup_old_files(realm)

    end_deploy_time = datetime.now()

    # Invalidate the CDN so it points to the new resources rather than the old resources (which we've deleted)
    if purge_mode == "sync" or purge_mode == "async":
        purge_cache(realm, asyncPurge=(purge_mode == "async"))

    print(f"{get_timestamp()} {colorize('Deployment complete', 'green')} (deploy time taken: {end_deploy_time - starttime})\n")
    print(f"Direct access at: https://{STORAGE_ACCOUNT_NAME[realm]}.{AZURE_ACCOUNT_SUFFIX[realm]}/index.html\n")

if __name__ == "__main__":
    parser = argparse.ArgumentParser(description="Deploy Angular app to Azure Blob Storage.")
    parser.add_argument("--realm", required=False, help="Deployment realm ('stage', 'prod'). Default: 'stage'.")
    parser.add_argument("--cleanup-resources", required=False, help="Cleanup old resources from previous deploy after current deployment succeeds", default=True)

    cdn_group = parser.add_mutually_exclusive_group()
    cdn_group.add_argument("--no-cdn-purge", action="store_true", help="Do not purge CDN (default).")
    cdn_group.add_argument("--purge-cdn-sync", action="store_true", help="Purge CDN synchronously (will be slow).")
    cdn_group.add_argument("--purge-cdn-async", action="store_true", help="Purge CDN asynchronously (returns immediately).")

    args = parser.parse_args()

    if args.purge_cdn_sync:
        purge_mode = "sync"
    elif args.purge_cdn_async:
        purge_mode = "async"
    else:
        purge_mode = "no-purge"  # Default

    # Check Azure CLI login
    check_az_login()

    # Deploy the app
    deploy(realm=args.realm, cleanup_resources=args.cleanup_resources, purge_mode=purge_mode)

Enjoying this migration guide?

Get notified when new chapters are published. No spam, unsubscribe anytime.
